Showing all 19 results
-
Basic Series, Nextion
Nextion BASIC NX8048T070 7.0″ HMI TFT LCD Touch Display
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colours
- TFT Screen with integrated 4-wire Resistive Touch Panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- On board micro-SD card slot for firmware upgradation
- Visual Area: 154.08mm(L)×85.92mm(W)
- Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%
- Recommended Power Supply: 5V, 2A, DC
- Certificates: CE/EMC, RoHS (certificates)
SKU: IM150416007 -
-
Intelligent Series, Nextion
Nextion Intelligent NX4827P043-011R 4.3″ HMI Resistive Touch Display
NX4827P043-011R is a Nextion Intelligent series 4.3” resistive HMI touchscreen without enclosure and SKU is 6920075776478
- 4.3” LCD-TFT HMI display module
- 480 x 272 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
SKU: 6920075776478 -
Intelligent Series, Nextion
Nextion Intelligent NX8048P050_011C_Y HMI 5.0″ Resistive Touch Display with enclosure
Intelligent Series, NextionNextion Intelligent NX8048P050_011C_Y HMI 5.0″ Resistive Touch Display with enclosure
NX8048P050-011C-Y is a Nextion Intelligent series 5.0” resistive HMI touchscreen with enclosure and SKU is 6920075776553
- 5” LCD-TFT HMI display module
- 840 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
- MPN: 6920075776553
SKU: 6920075776553 -
Intelligent Series, Nextion
Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure
Intelligent Series, NextionNextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure
NX8048P050-011R-Y is a Nextion Intelligent series 5.0” resistive HMI touchscreen with enclosure and SKU is 6920075776539
- 5” LCD-TFT HMI display module
- 840 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
SKU: 6920075776539 -
Nextion
Nextion Intelligent NX8048P070-011C 7.0″ HMI Capacitive Touch Display
Nextion Intelligent Series NX8048P070-011C is Intelligent series 7.0” capacitive HMI touchscreens without enclosure and SKU is IM190402004
- Model Name: NX8048P070-011C
- Resolution: 800×480 pixel
- Touch-type: Capacitive
- Backlight lifetime (Average): >30,000 Hours
- MPN: IM190402004
NX8048P070-011R are Intelligent series 7.0” resistive HMI touchscreens without enclosure ans SKU is IM190402003
SKU: IM190402004 -
Intelligent Series, Nextion
Nextion Intelligent NX8048P070-011C-Y 7.0″ HMI Capacitive Touch Display with enclosure
Intelligent Series, NextionNextion Intelligent NX8048P070-011C-Y 7.0″ HMI Capacitive Touch Display with enclosure
NX8048P070-011C-Y is a Nextion Intelligent series 7.0” capacitive HMI touchscreen with enclosure and SKU is IM190402002
-
– NX8048P070-011C-Y(7.0” IPS RGB 65K capacitive touchscreen)
- – Onboard MCU 200MHz and up to 128MB for HMI project
- – Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
- – 4 pins (+5V, TX, RX, GND) TTL serial interface
- – 300 nit Brightness with 1% interval adjustment
- – Audio interface
- – CE and RoHS Compliant
- – Model: NX8048P070-011C-Y(HMI Capacitive Touch Display)
NX8048P070-011R-Y is a Nextion Intelligent series 7.0” resistive HMI touchscreen with enclosure and SKU is IM190402001
SKU: IM190402002 -
-
Intelligent Series, Nextion
Nextion Intelligent NX8048P070-011R-Y 7.0″ HMI Capacitive Touch Display with enclosure
Intelligent Series, NextionNextion Intelligent NX8048P070-011R-Y 7.0″ HMI Capacitive Touch Display with enclosure
NX8048P070-011C-Y is a Nextion Intelligent series 7.0” capacitive HMI touchscreen with enclosure and SKU is IM190402002
-
– NX8048P070-011C-Y(7.0” IPS RGB 65K capacitive touchscreen)
- – Onboard MCU 200MHz and up to 128MB for HMI project
- – Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
- – 4 pins (+5V, TX, RX, GND) TTL serial interface
- – 300 nit Brightness with 1% interval adjustment
- – Audio interface
- – CE and RoHS Compliant
- – Model: NX8048P070-011C-Y(HMI Capacitive Touch Display)
NX8048P070-011R-Y is a Nextion Intelligent series 7.0” resistive HMI touchscreen with enclosure and SKU is IM190402001
SKU: IM190402001 -
-
Intelligent Series, Nextion
Nextion Intelligent Series NX1060P101-011C-I is Intelligent series 10.1” capacitive HMI touchscreens without enclosure
Intelligent Series, NextionNextion Intelligent Series NX1060P101-011C-I is Intelligent series 10.1” capacitive HMI touchscreens without enclosure
Nextion Intelligent Series NX1060P101-011C-I is Intelligent series 10.1” capacitive HMI touchscreens without enclosure and SKU is IM190411002
- Model Name:NX1060P101-011C-I
- Operating Voltage(V):4.75 to 6.5
- Size(inch):10.1
- Resolution:1024*600
- Touch Panel: Capacitive(CTP)
- Flash(MB):128
- RAM(KB):512
- MCU(MHz):200
NX1060P101-011R-I are Intelligent series 10.1” resistive HMI touchscreens without enclosure and SKU is IM190411001
SKU: IM190411002 -
Nextion, Nextion Accessories
Nextion IO Adapter
The Nextion IO Adapter is made specially to work with Nextion Enhanced HMI Display Series which covers standard 2.4″, 2.8″, 3.2″, 3.5″, 4.3″, 5.0″, 7.0″ The small board allows Nextion Enhanced display users to have extended IO to connect with external devices
SKU: IM161123001 -
Enhanced Series, Nextion

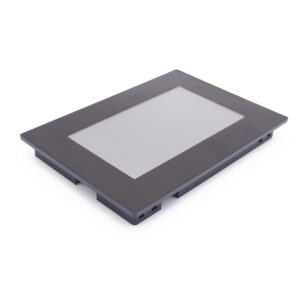

NEXTION NX8048K070-011R – 7.0” Enhanced Series USART HMI Resistive Touch Display with Enclosure
Enhanced Series, NextionNEXTION NX8048K070-011R – 7.0” Enhanced Series USART HMI Resistive Touch Display with Enclosure
NX8048K070_011R is a resistive touch panel with an enclosure. It integrates with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM, and with GPIO supported.
- Model Name: NX8048K070-011R
- Resolution: 800×480 pixel
- Touch-type: Resistive
- Backlight lifetime (Average): >30,000 Hours
- Touches: >1 million
SKU: IM170428001 -
Enhanced Series, Nextion
NX3224K024 – Nextion 2.4” Enhanced Series HMI Touch Display
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 16MB
- EEPROM: 1024 bytes
- RAM: 3584 bytes
- Instruction buffer: 1024 bytes
- Color: 65K (65536) colors
- Resolution: 320×240 pixel
- Adjustable Brightness: 0~180 nit – the interval of adjustment is 1%
SKU: IM160511002 -
Enhanced Series, Nextion

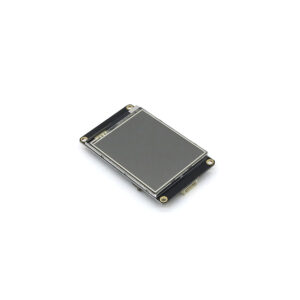

NX3224K028 – Nextion 2.8” Enhanced Series HMI Touch Display
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 16MB
- EEPROM: 1024 bytes
- RAM: 3584 byte
- Instruction buffer: 1024 bytes
- Color: 65K (65536) colors
- Resolution: 320×240 pixel
- Adjustable Brightness:0~180 nit- the interval of adjustment is 1%
SKU: IM160511003 -
Basic Series, Nextion
NX3224T024 – Nextion 2.4” Basic Series HMI Touch Display
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.
- 320 x 240 Resolution
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- RGB 65K true to life colours
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4 pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data
- On board micro-SD card for firmware upgrade
- Visual Area:36.72mm(L)×48.96mm(W)
- Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
- 5V90mA power consumption
- Generic using for all Arduino or Raspberry Pi project
SKU: IM150416002 -
Basic Series, Nextion
NX3224T028 – Nextion 2.8” Basic Series HMI Touch Display
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.
SKU: IM150416004 -
Basic Series, Nextion
NX4024T032 – Nextion 3.2” Basic Series HMI Touch Display
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.
SKU: IM150416005 -
Enhanced Series, Nextion
NX4827K043 – Nextion 4.3” Enhanced Series HMI Touch Display
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 32MB
- EEPROM: 1024 bytes
- RAM: 8192 bytes
- Instruction buffer: 1024 bytes
- Color: 65K (65536) colors
- Resolution: 480×272 pixel
- Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%
- MPN: IM160511006
SKU: IM160511006 -
Enhanced Series, Nextion

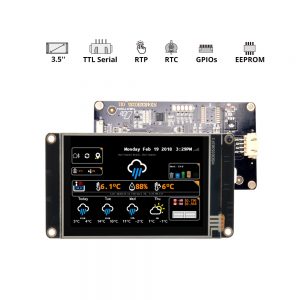

NX4832K035 – Nextion 3.5” Enhanced Series HMI Touch Display
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.
SKU: IM160511005
